The patent pending Surrogate IV is the latest generation of anthrobots. This generation replicates human shoulder, spine, and wrist architecture using commercial-off-the-shelf (COTS) parts for a new level of sophistication.
Features include:
Electric Ball Screw Drive
Human equivalent shoulder dexterity: Utilizing the Omni-Wrist VIII for 180 degrees singularity-free pitch/yaw and 90 degrees roll. Shoulder protraction/retraction 15.24 cm (6.0”).
Human equivalent wrist dexterity: 180 degrees singularity-free pitch/yaw and 90 degrees roll.
Human equivalent spine dexterity: 180 degrees singularity-free pitch/yaw and 90 degrees roll.
Human equivalent elbow: 150 degrees pitch.
Patent pending.

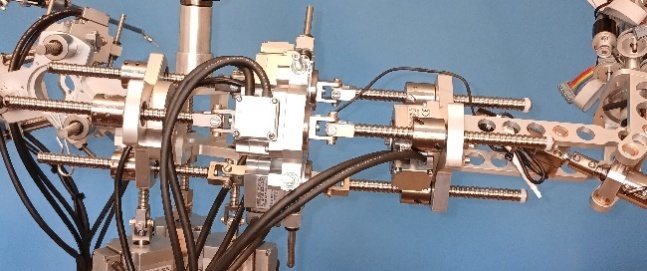

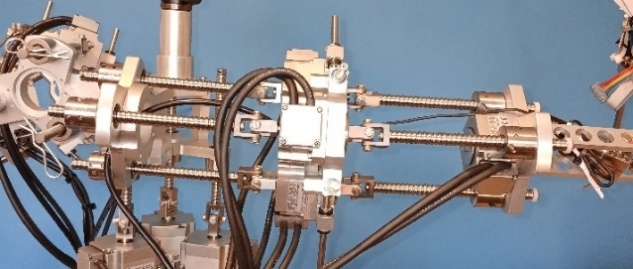

Ross-Hime Designs, Inc. Robotic Surrogate IV (S4). The S4 demonstrates the new high-dexterity latest generation flexible joint for shoulder, spine and wrist. All pivoting axes are powered by electric linear actuators for efficiency and ease of maintenance.
The S4 has commercial applications in the burgeoning industry of humanoid robots and surgical robotics. Designed for ease of maintenance the S4's COTS makes it a practical research tool for the university or research institution.
S4 Specification:
Payload: 4.82 kg (9 lb.)
Speed: Total swept angel: 180 degrees in 4.2 s.
System weight: 18 Kg (39.6 lb.)

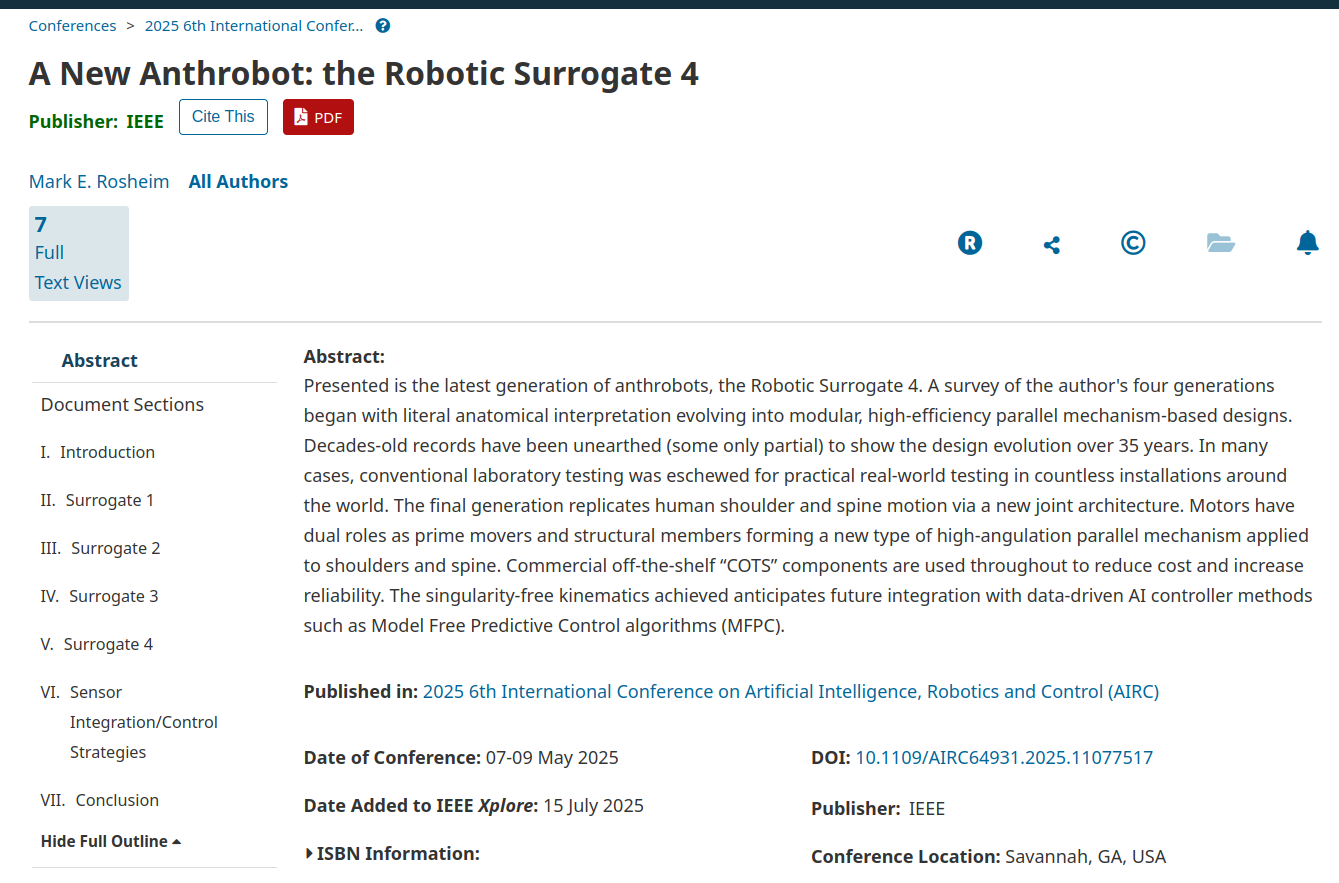

A New Anthrobot: The Robotic Surrogate 4, Mark E. Rosheim. was presented at
"2025 6th International Conference on Artificial Intelligence, Robotics, and Control." Savannah, Ga, May 7-9, 2025, pp. 79-96. 979-8-3315-4347-1/25/$31.00 (c)2025 IEEE. Publication late 2025.
